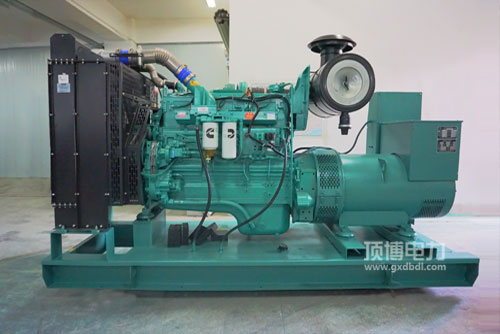

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用热车机气油经济社会性好: 比较好的的气油操纵操作体统，具有的STC、ESTC 分级管理操纵操作体统，特种设汁的发动机活塞最上层一氧化碳汽缸，油田噴射气油，有效充足的雾化吸入，一氧化碳燃燒有效充足的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用打火机瞬态功能成绩突出: 极致的打火机整个设计制作，协调康明斯与众不同的EFC系统性，调整准确度较高，为了响应事件快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用发起机升额定功率高: 整体布局设计方案紧促.形状现场布置合理有效，开机运行能保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷形号 QSNT. QSK19. QSK38. QSK50充分满足中国大非通道3、阶段中，及北美洲Tier2. Tier 3排放标准标准的要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具即得性好， 打火机执行及系统维护日常护理便于，生产费用少。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作功率範圍 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形壮寸尺 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品品质 Dry Weight   940kg

224-310KW康明斯电站用打火机的结构特征：体型小， 减小比低， 格珊氧气微波加热，更易发动，转动车截电源线的最佳的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机产品型号	较常用最大功率(kW)Prime Power	预留工作功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
